Top-of-the-Line Traditional Home Elevator

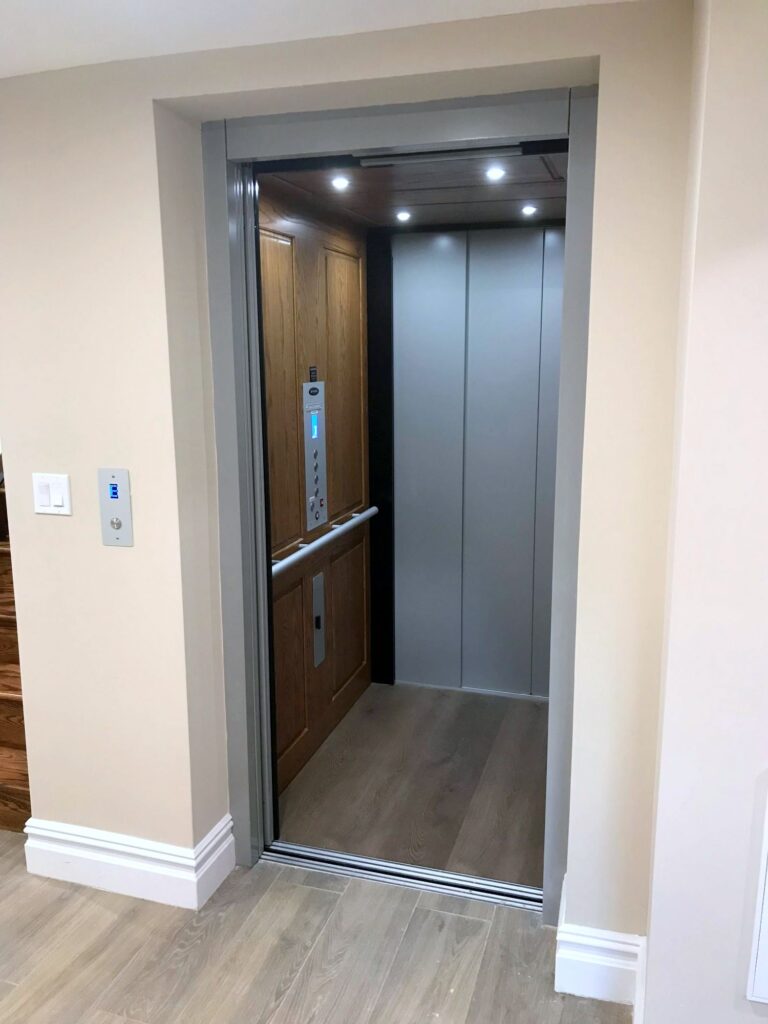

Zenith Residential Elevator
Our top-of-the-line traditional home elevator; based on our commercial-grade Orion MRL elevator, the robust Zenith offers the finest in ride quality with whisper-quiet operation.
Features
The Zenith Home Elevator offers the finest in ride quality with whisper-quiet operation.
Customize Your Elevator
We offer a large variety of attractive cab finishes, colors, and options to customize your design for a more personalized look.
Machine Roomless
Less space required for the installation. Unique geared traction counterweight design requires only a small space in a closet for components, so a machine room is not needed.
Counterweight traction with slack cable safety device
Geared motor 1:1 sheave, three 3/8″ diameter traction cables (ropes), rope wedge sockets.
Hide-away gate
Innovated gate system tucks away for maximum entryway and interior space.
Safe & Secure
Battery operated (UPS) emergency lowering and lighting, powered emergency lowering, motorized braking, lockable control panel, elevator door interlocks, emergency stop switch, in-use indicator light on hall stations and slack cable and safety device.
Standard Features
8lb/ft T-rail system, anti-creep device, cartop stop switch, automatic cab on/off interior lighting, digital display in car operating panel, surface-mount telephone, oxford white ceiling with 4 LED pot lights, melamine interior in choice of colors or MDF panels. We offer standard finishes of flat melamine or unfinished MDF (see cab configurator), clear or bronze anodized aluminum rectangular cab operating panel and hall call stations, double plywood floor, oxford white ceiling.
Customizing Your Solution
Options
Optional Configurations
Type 1, 2, 3, 4, and 5.
Cab Sizes
W36″ x L54″ x H80″ (914 mm x 1371 mm x 2032 mm), Type 1, 2, 3, 4, 5
W36″ x L60″ x H80″ (914 mm x 1524 mm x 2032 mm), Type 1, 2, 3, 4, 5
W40″ x L54″ x H80″ (1016 mm x 1371 mm x 2032 mm), Type 1, 2, 3, 4, 5
Custom cab sizes also available
Other Options
Optional Height: 84″ (2133 mm), 96″ (2438mm)
Optional Flooring: Hardwood (see color chart).
Up to 6 stops, telephone cabinet, alpha-numeric button marking, two-exit opening, buffer springs, speed upgrade to 50 fpm or 60 fpm (1000 lb capacity) subject to local code, keyed hall call stations.
Optional Cab Finishes
Hardwood, unfinished veneer, luxury MDF, routed white MDF (see cab configurator).
Optional Fixture Finishes
Brass #4 finish, stainless steel, blackened stainless steel or architectural white (handrail, cab operating panel, hall call stations). Hall call stations available in rectangular and oval design.
Doors and Gate Options
Bi-folding doors, Panel-fold gate in clear anodized aluminum with clear acrylic inserts, or anodized bronze with bronze acrylic inserts, Visi-fold gate anodized bronze with bronze acrylic, Clear-fold gate in clear anodized aluminum with clear acrylic inserts. Power gate and door operators. For the ultimate in convenience, add Savaria automatic slim doors (requires minimum 84″ cab height).
Technical Information
Applications: Residential, indoors
Standard capacity: 1400 lb (635 kg)
Maximum travel distance: 50′ (15.24 m), 60′ (18.29 m) where code permits with up to 6 stops and 2 openings
Nominal speed: 40 ft/min (0.20 m/s)
Motor: Geared motor 1:1 sheave
Minimum pit: 10″ (254 mm)
Minimum overhead clearance: 108″ (2743 mm)
Power Supply: 208 Volt, three phase, 60 Hz, 30 Amps or 240 Volt, single phase, 40 Amps, 60 Hz
